Fibre Optic Pre-terminated Breakouts from alker






Does this display correctly? Please add us to your safe email list

Alker Fibre Optic Specialists Ltd, Fibre Optic Breakout Mailing

Dear Customer,

Alker offer a range of fibre optic pre-terminated breakouts so whether you need to deploy optical fibre in an office or harsh environment we have a product for you.

We design and manufacture in-house making it simple and quick to tailor your requirements. If you require a product supplied in a flight case for site transport, you have a particular size constraint or require fibre of mixed mode within an assembly please contact us to discuss your requirements on 01342 870941 or Email;

Our pre-terminated breakout products can be categorised as the following :

If you know someone that would be interested in this email please forward this to them and we hope they will subscribe to our mailing list.

Breakout Features:

Indoor
Tight Buffered
Outdoor
SWA
Outdoor
CSTA
Core Count 2-24 2-24 2-24
Enhanced Crush Resistance
Enhanced Tensile Strength
Enhanced Rodent Resistance
Direct Burial
900um Tails
2mm Tails
3mm Tails
1.5mm dia. Stainless Steel Armoured Tails
3mm PVC Jacket over 1.5 Stainless Steel Armoured Tails
Pulling Solution
Mil.Spec. Tactical Fibre Option
Customisable Length
Deployable Reel Option
DIN UPC
E2000 APC
E2000 UPC
FC APC Narrow (R) 1.95m Keyway
FC APC Wide (N) 2.15mm Keyway
FC UPC
LC APC
LC UPC
SC APC
SC UPC
SMA 905
Singlemode 9/125 OS1
Singlemode 9/125 OS2
Multimode 62.5/125 OM1
Multimode 50/125 OM2
Multimode 50/125 OM3
Multimode 50/125 OM4

Indoor Tight Buffered Pre-terminated Breakout



Indoor Breakout Example from Alker


Our tight buffered indoor pre-terminated breakout assembly was designed to meet the needs of the customers that required a solution to link two assets in an indoor environment.

  The tight buffered cable offers excellent cable management allowing backbone lines to be installed faster while taking up less valuable ducting space than individual patchcord alternatives.

All our products can be customised, contact us on 01342 870941 or Email to discuss your requirements.


Outdoor Steel Wire Armour Pre-terminated Breakout



Outdoor Steel Wire Armour Breakout from Alker


Our SWA outdoor breakout assembly was designed to meet the needs of the customers that required a solution to link two assets in a harsh environment.



  The breakout unit is machined from solid billet protecting the point the fibre diverges into the breakout tails.
The steel wire armoured gel filled loose tube cable has enhanced crush resistance allowing more durable surface runs as well as direct burial options.

All our products can be customised, contact us on 01342 870941 or Email to discuss your requirements.


Outdoor Corrugated Steel Tape Armour Pre-terminated Breakout



Outdoor Corrugated Steel Tape Armour Breakout from Alker


Our CSTA outdoor breakout assembly was designed to meet the needs of the customers that required a solution to link two assets in an outdoor environment.
The breakout unit is machined from solid billet protecting the point the fibre diverges into the breakout tails.
The corrugated steel tape armour gel filled loose tube cable has increased crush resistance for direct burial applications as well as increased rodent resistance.

All our products can be customised, contact us on 01342 870941 or Email to discuss your requirements.


Case Study: Bespoke Armoured Fibre Optic Breakout

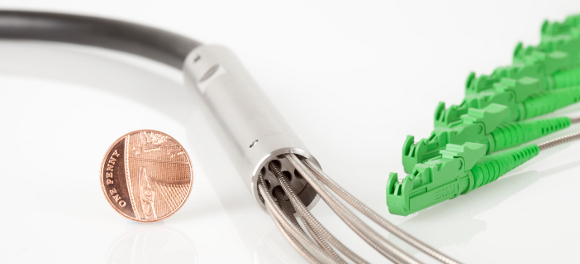

BT Group approached alker with a brief to break out an 8 core fibre optic cable into micro-armoured stainless steel 1.5 mm diameter tails and terminate with E2000 APC connectors. The overall diameter could not exceed 16mm (to help visualise this 1-pence piece is 18mm). The cable was to run alongside high voltage power cables and due to the harsh environment the breakout required insulation and waterproofing. Read More..

Case Study: BT Group PLC Armoured Fibre Optic Breakout

Please call us on 01342 870941 or Email for more information.
